FMT 230V-60lpm Diesel Transfer Vane Pump

Description

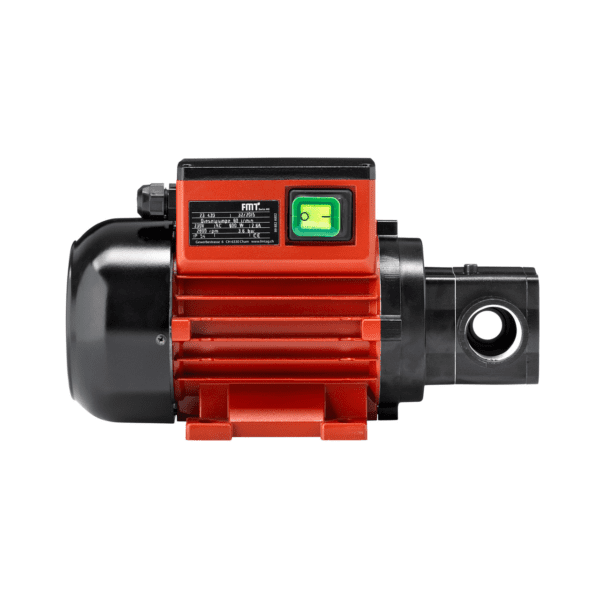

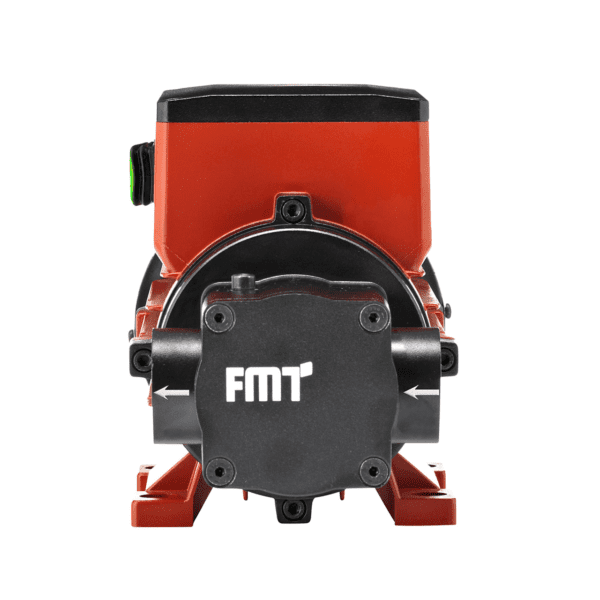

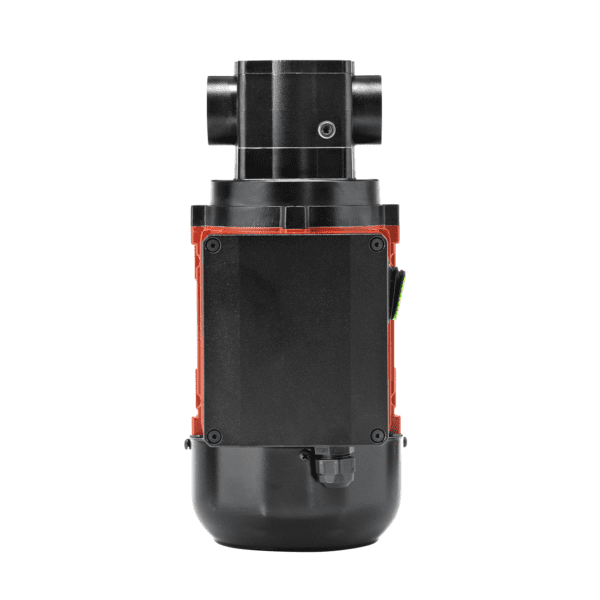

FMT 230V-60lpm Diesel Vane Pump

A top quality, Swiss-made sliding-vane pump, designed for use with diesel and other products which are not aggressive to the pumps component materials. Due to their unsurpassed reliability on continuous duty operations, these can also be used as process pumps.

• First class construction of electric machines and pumps
• Designed for a long service life
• Vane pump, with integral bypass
• On/Off switch
• Fuse
• Siphon protection acc. to WHG (German government regulation for environmental care), continuously active
• Encapsulation of the electric motor, which, in case of extreme temperature fluctuations, largely prevents the formation of condensed water and of short-circuits resulting thereof
• Motor and switch case made of shock resistant, die-cast aluminium
• Continuous operation – a real endurance runner
• Suction height: 5m
• Small tolerances provide a high suction- and pressure performance
• Pump case freely positional in all 90° positions
• Connecting cable – Length: 2m
• Connection inlet/outlet – 1” female
• Pump design – vane pump, self priming
• Flow rate – 60lpm
• Max Pressure – 2.2 Bar
• Suction height – 5m
• Voltage – 230v
• Protection – IP54 Rated

Dimensions L x W x H (mm) / (inch) 270 x 120 x 120 / 10.6 x 4.7 x 4.7
Weight (kg) / (lb) 5 / 11

As well as this FMT 230V-60lpm Diesel Vane Pump we also supply the complete range of FMT diesel transfer vane pumps – FMT Diesel Pumps
