GPI G20-012PX 12v Gear Pump – 76lpm
FEATURES OF THE G20-012PX 12V 76LPM GEAR PUMP:
- Operating Temp – -20°F TO 125°F (-29°C TO 52°C)
- Connection – Inlet/Outlet – 1” NPTF
- Max Pressure – 15 PSI
- Flow rate – 76 L/min
*PLEASE NOTE:* GPI/GPro pump prices are inclusive of shipping from the USA and supplied ex-works from our factory with an average 2 week lead time.
From £648.08 £777.70
- Description
- Additional information
- Technical Downloads
Description
G20-012PX 12V 76LPM GEAR PUMP – *UL LISTED & *ATEX APPROVED
The G20-012PX 12V Gear Pump features our new modular design with simple 4-bolt connection points to complement our Quick-Fit accessories. Attach a filter, meter or both quickly and easily. The 12V motor delivers flow rates up to 20 GPM. Featuring a rotary gear design and powder coated die-cast aluminium body to ensure a long life with minimal maintenance. Pump-only model, accessories sold separately to allow you to customize your pump to your needs. UL listed to US and Canadian safety standards. ATEX certification.
BENEFITS OF GPI GEAR PUMPS:
- Easy to install – Power cord is pre-installed
- Field serviceable – 10 minutes to change gears or switch
- Die-cast aluminium and powder coated – 30% lighter and won’t rust
- Gear pumps last 3x longer than vane pumps
- Extremely low warranty rate
FEATURES:

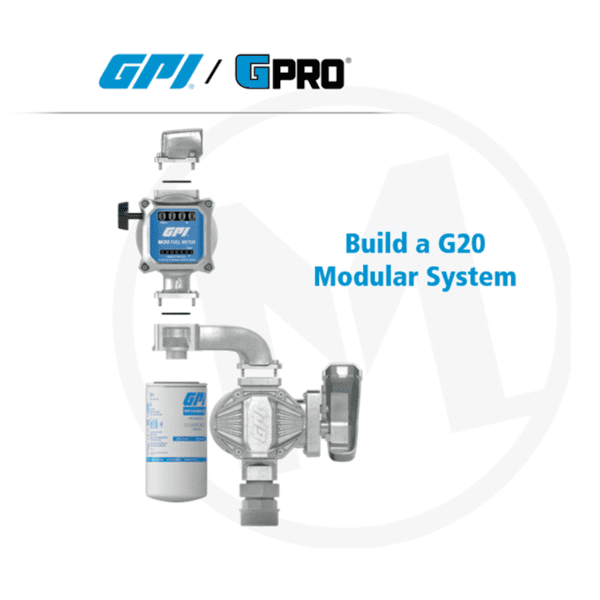

- Quick-fit modular makes it easy to attach a filter, meter, or both to build your own custom system
- Diecast aluminium housing is lightweight – weighs 19lbs = low stress on the tank
- Powder-coated body to prevent rust and survive all weather conditions
- Drip catch – Lockable nozzle holder keeps your truck and tanks clean and stops fuel theft
- Rotary gear design: fewer moving parts means less friction and wear on components, for minimal maintenance and a longer pump life
- Spin collar mount makes installation and pump orientation easy – fits any 2″ NPT tank
WHAT’S IN THE BOX:
- G20-012PX 12V DC 20 GPM Fuel Transfer Pump
- Modular fitting w/hardware
- Tank adapter
- Fuse assembly
- Owners Manual
*UL LISTED PUMPS:
UL Listed means that the product has been tested by UL to nationally recognized safety and sustainability standards. Additionally, it has been found to be free from a reasonably foreseeable risk of fire, electric shock in a Division 2 environment. All pumps marked as UL LISTED come with UL certification.
*ATEX APPROVED PUMPS:
ATEX certification ensures that equipment will work safely in an explosive environment without causing any accident if used as per the manufacturer’s recommendations. Equipment used in the explosive atmosphere within the European Union (EU) and the European Economic Area (EEA) must be ATEX certified. All pumps marked as ATEX APPROVED come with ATEX certification.
We supply a wide range of GPI products – GPI Refuelling Equipment
Additional information
| Weight | 2 kg |
|---|---|
| Flow Rate | 76-90lpm |
| Fluid Type | Diesel, Jet Fuel, Kerosene / Heating Oil, Petrol |
| Product Type | Pump |
