GPI M30-L8B Mechanical Flow Meter
FEATURES OF THE GPI M30-L8B 1″ BSP MECHANICAL FUEL METER:

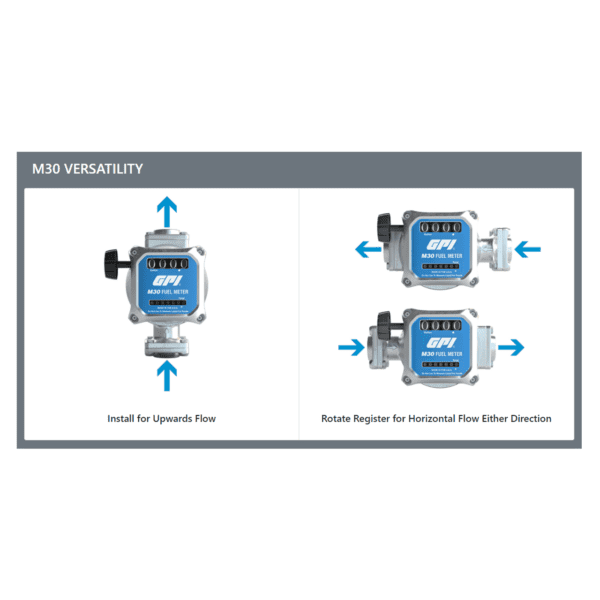

- Features simple four-bolt connections that allow the meter to be mounted in multiple directions
- Within +/- 2% across a flow range from 5 to 30 GPM (19 to 114 L/min)
- Easy to calibrate
- The M30 can also be adapted to current and legacy GPI/GPRO pumps
£260.00 £312.00
- Description
- Additional information
- Technical Downloads
- Reviews (0)
Description
GPI M30-L8B 1″ BSP MECHANICAL FUEL METER
This quick-fit modular fuel meter is easy to install, easy to use, and easy to maintain. It is designed for the field measurement of thin viscosity petroleum fuel only and intended for use with pump systems in the 114 L/m flow range. Using mechanical gears, this meter translates flow data from a nutating disk into calibrated units which are indicated on the face of the meter. The M30 is equipped with both BSPP and Flange connections which allows it to be installed on all threaded pump outlets or modular GPI products.
FEATURES
- Easily attaches to the G20 fuel transfer pump
- Features simple four-bolt connections that allow the meter to be mounted in multiple directions
- Within a +/-2% accuracy across a flow range from 9 to 114 L/min
- Durable aluminium housing; magnetic drive replaces the driveshaft and seal, eliminating driveshaft leaks
- Twist knob reset; batch total and cumulative total display
- Unsurpassed Accuracy
SPECIFICATIONS
- Meter type – Nutating Disc
- Flow range – 19-114lpm
- Max working pressure – 50 PSI
- Max batch total – 999.9
- Max cumulative total – 999,999.9
- Inlet/outlet threads – 1″ BSPP
Additional information
| Weight | 2 kg |
|---|---|
| Flow Rate | 71-120lpm |
| Fluid Type | Diesel, Kerosene / Heating Oil, Petrol |
| Product Type | Flow Meter |
