Pedrollo PQ60 Side Suction Peripheral Transfer Pump for Diesel & Water

Description

PEDROLLO PQ60 SIDE SUCTION PERIPHERAL PUMP FOR DIESEL & WATER

Reliable, economical and simple to use, this Pedrollo pump is useful for domestic or industrial applications. Also automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure. These pumps are suitable for handling clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.

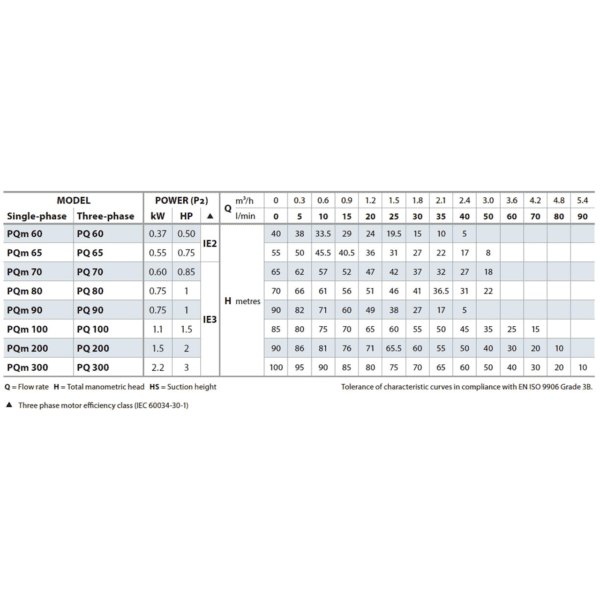

PUMP PERFORMANCE RANGE:

• Flow rate up to 90 l/min (5,4 m³/h)
• Head up to 100m

PUMP SPECIFICATIONS:

• Temperature (min/max) -10 °C to +90 °C
• Ambient temperature (min/max) -10 °C and +40 °C (+50 °C for PQ 60)
• Manometric suction lift up to 8m
• Max. working pressure – 6 bar for PQ 60-65
• Continuous service S1

STRUCTURAL CHARACTERISTICS FOR THE PEDROLLO PQ60 SIDE SUCTION PERIPHERAL PUMP

• Cast iron PUMP BODY, with UNI ISO 228/1 gas threaded suction and delivery ports
• (Optional BRONZE body available on 60 size models)
• Aluminium MOTOR BRACKET with brass insert (patented), reducing difficulties when starting the pump after long periods without use.
• BRASS IMPELLER, with radial peripheral blades, floating on the shaft
• AISI 316 stainless steel MOTOR SHAFT (AISI 416 up to 0.75 kW)
• MOTOR: pumps are coupled directly to an asynchronous, high efficiency PEDROLLO induction motor, which is quiet running, closed and externally ventilated, with <IM B3> structural shape, suitable for continuous duty.
• INSULATION class F (B up to 0.75 kW).
  A thermal cut-out device (motor protector) is incorporated in single phase motors.
  Three phase motors require an adequate external motor protector complying with current standards
• PROTECTION IP 44.
• CONSTRUCTION AND SAFETY STANDARDS: complies with EN 60 335 -1, CEI 61-150), EN60034-1), (IEC 34-1, CEI 2-3)
• REGISTERED MODEL

If you are looking for a particular Pedrollo pump please see the branded section listing all the Pedrollo pumps we offer here – Pedrollo diesel & Water pumps

Additional information

DATASHEET
