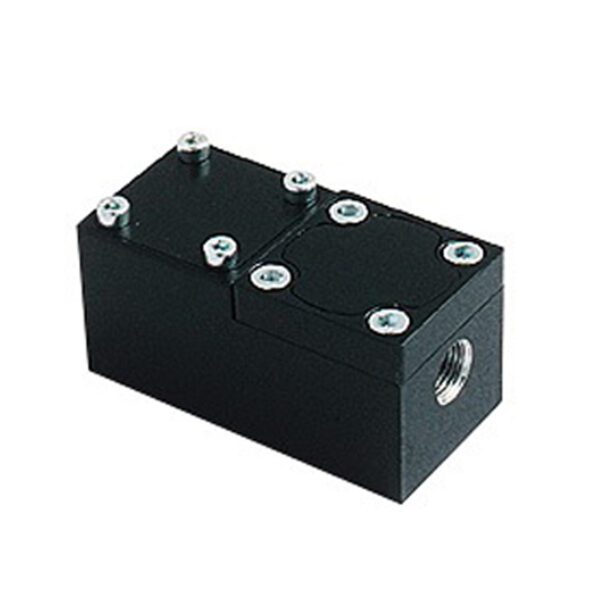

Piusi K200 Fuel Pulse Meter

Description

PIUSI K200 FUEL PULSE METER

The PIUSI K200 Fuel Pulse Meter product is an electronic flow meter suitable for the monitoring of lubricating oil. K200 as electronic flow meter shows on the display a partial-total of 5 digits (h=11.5 mm) with floating point from 0.001 to 999.99 Total, non-resettable to 8 digits (h=5 mm) from 1 to 99999999. View the K200 fuel flow meter here

Piusi K200HP Pulse Meter:

• Max Flow (lpm) – 2.5
• 1400 pulses per ltr
• Pressure (bar)-(psi) 1000-14200
• Fluid Viscosity: 1-2000 cSt
• Max Fluid Temperature – +60ºc
• 1/8″ F BSP
• IP Rating: IP65

Piusi K200 Pulse Meter:

• Max Flow (lpm) – 1.6
• 1400 pulses per ltr
• Pressure (bar)-(psi) 30-426
• Fluid Viscosity: 1-2000 cSt
• Max Fluid Temperature – +60ºc
• 1/4″ F BSP
• IP Rating: IP65

HIGH PRECISION

The K200 digital flow meter has been designed to ensure precise measurement of the quantity dispensed. Equipped with acetal resin oval gears, the K200 oil flow meter can monitor the dispensed flow of low, medium and high viscosity fluids such as fuels, lubricating oils and other special fluids compatible with the construction materials, for non-commercial dispensing.

RELIABLE OVER TIME

K200 consists of a body with aluminium measuring chamber for maximum reliability over time. The pulser type is reed switch, single-channel for better traceability of the quantity dispensed for a maximum flow rate of 2,8 l/min and a metering accuracy of +/- 0.5%.

These features are also included in the K200 flow meter for oil:

• Repeatability 0.2%.
• Pressure drop < 0.5 bar at the max. flow rate

Since 1953, PIUSI is a leading player in the global fluid handling sector, with a complete range of products for fluid transferring and management: the Italian quality and engineering at the service of private operators in agriculture, the automotive industry, workshops and garages, fleet management, road and sea transport worldwide.
