V25-012/24PX 12v/24v Vane Pump – 94lpm
FEATURES OF THE V25-012/24PX 12V/24V 94LPM VANE PUMP:
- Flow rate – 94 L/min
- Voltage– Available in 12v & 24v
- Connection – Inlet/Outlet – 1” NPT
- Operating Temp – -20°F TO 125°F (-29°C TO 52°C)
*PLEASE NOTE:* GPI/GPro pump prices are inclusive of shipping from the USA and supplied ex-works from our factory with an average 2 week lead time.
From £1,086.20 £1,303.44
- Description
- Additional information
- Technical Downloads
Description
V25-012/24PX 12V/24V 94LPM VANE PUMP – *UL LISTED & *ATEX APPROVED

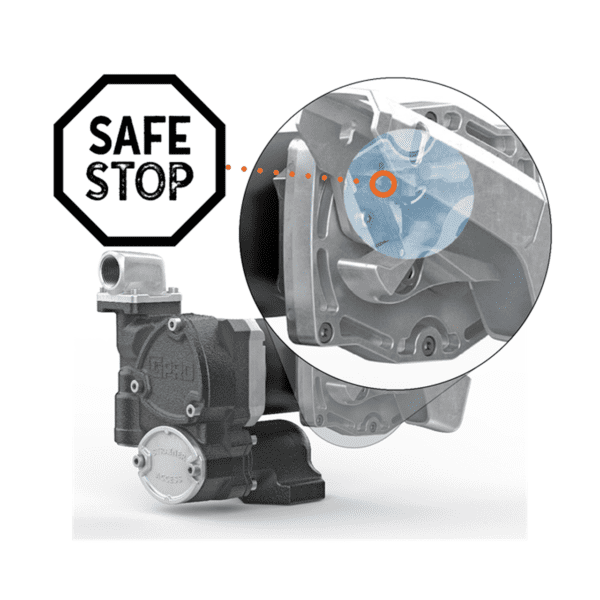

The GPI V25-012/24PX Vane Pump quick fit modular pump design eliminates dangerous leaks. Four bolts and an O-ring quickly attach a filter, meter, or both. Equipped with Safe Stop Power Down – 30-minute auto power down with easy reset, Pump 750 gallons uninterrupted, prevent misuse.
PROFESSIONAL GRADE GPI QUICK FIT MODULAR PUMP – ENGINEERED TO DELIVER:
- Industry-leading FIVE-YEAR warranty
- High operating pressure – ideal for use with a hose reel
- Powder-coated – creates a durable and long-lasting finish that resists corrosion, withstands chipping, scratching, fading, and wearing
- Extended duty cycle tested to exceed industry standards
FEATURES:
- The quick-Fit modular pump design eliminates dangerous leaks. Four bolts and an O-ring quickly attach a filter, meter, or both.
- High-Pressure Performance ideal with hose reel
- Equipped with Safe Stop Power Down – 30-minute auto power down with easy reset, Pump 750 gallons uninterrupted, prevent misuse.
- Lockable Nozzle Holder to deter fuel theft. The new drip catch feature helps keep tanks and trucks clean.
- Multidirectional 90-degree outlet to adapt easily for your application

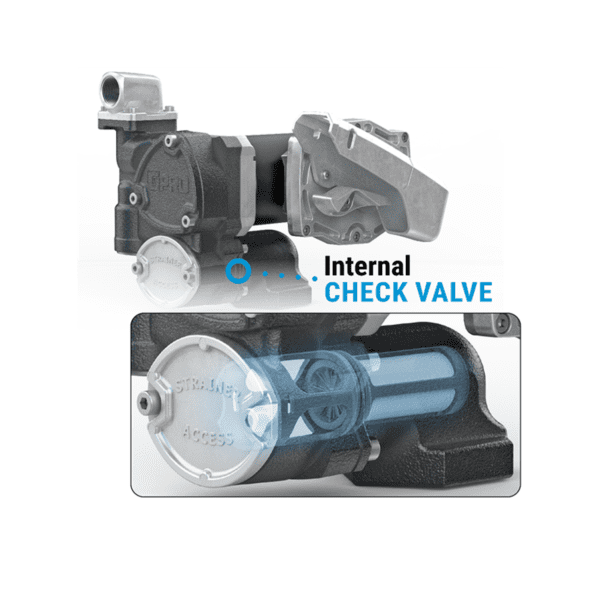

- Internal Check Valve w/Perfect Prime to keep pump head primped and ready to work reduces wear avoiding dry prime conditions.
- Easy Access to fuel strainer – simply remove two bolts and strainer cover
- Tank Adapter Included for easy installation, ready for anti-siphon vent kit.
WHAT’S IN THE BOX:
- V25-12PX 12V DC 25 GPM / V25-24PX 24V DC 25 GPM Fuel Transfer Pump
- Modular fitting w/hardware
- Tank adapter
- Fuse assembly
- Owner’s manual
*UL LISTED PUMPS:
UL Listed means that the GPI V25-012/24PX Vane Pump has been tested by UL to nationally recognized safety and sustainability standards. Additionally, it has been found to be free from a reasonably foreseeable risk of fire, electric shock in a Division 2 environment. All pumps marked as UL LISTED come with UL certification.
*ATEX APPROVED PUMPS:
ATEX certification ensures that equipment will work safely in an explosive environment without causing any accident if used as per the manufacturer’s recommendations. Equipment used in the explosive atmosphere within the European Union (EU) and the European Economic Area (EEA) must be ATEX certified. All pumps marked as ATEX APPROVED come with ATEX certification.
We offer wide range of other GPI refuelling products here too – GPI Refuelling Equipment
Additional information
| Weight | 2 kg |
|---|---|
| Flow Rate | 25 GPM (94 L/min) |
| Pump Type | Carbon Vane |
| Current Draw | 35 AMPS |
| Operating Temperature | -20°F TO 125°F (-29°C TO 52°C) |
| Pump Housing | Cast Iron |
| Connections | Inlet/Outlet – 1 IN. NPT |
| Flow Rate | 91-120lpm |
| Fluid Type | Diesel, Jet Fuel, Kerosene / Heating Oil, Petrol |
| Product Type | Pump |
