FEL Drop Weight Fire Valve Fitting Kits

Description

FEL DROP WEIGHT FIRE VALVE FITTING KITS

Drop Weight Fire Valve also sometimes known is a free fall fire valve.

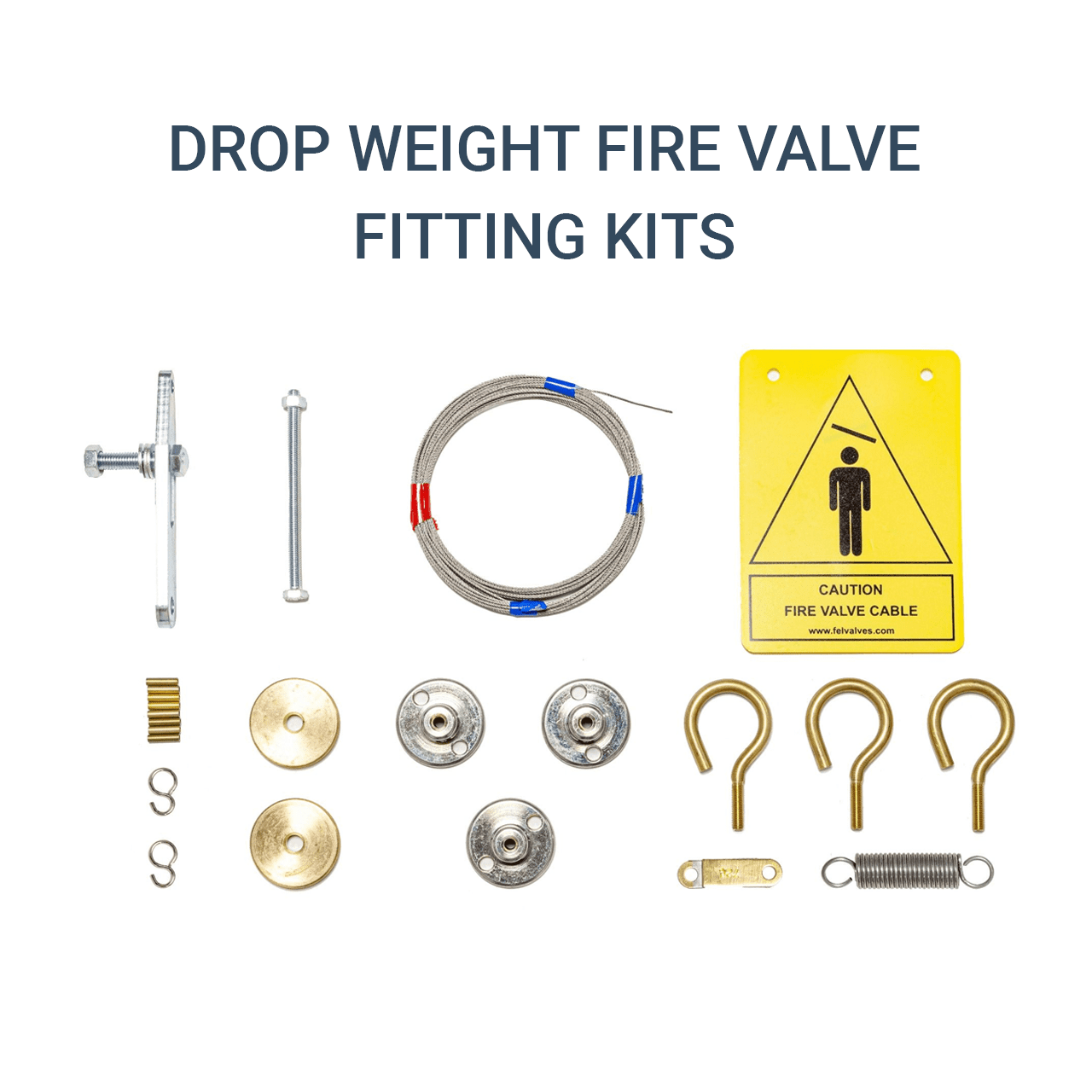

The FEL Valves range of Free Fall Fire Valves are suitable for installation in either horizontal or vertical pipe work, and are designed to provide a positive, 100% shut off when used as a fuel isolating valve, or opening, when used as a fuel dump valve. A standard Free Fall Valve assembly comprises of a valve, lever and weight, together with a fitting kit. This page is for addition kits if more pulleys, cable or springs are required. These kits are offered for each size of valve to ensure the correct spares are ordered. The kits include everything in the photo for the size valve you select from the drop down menu.

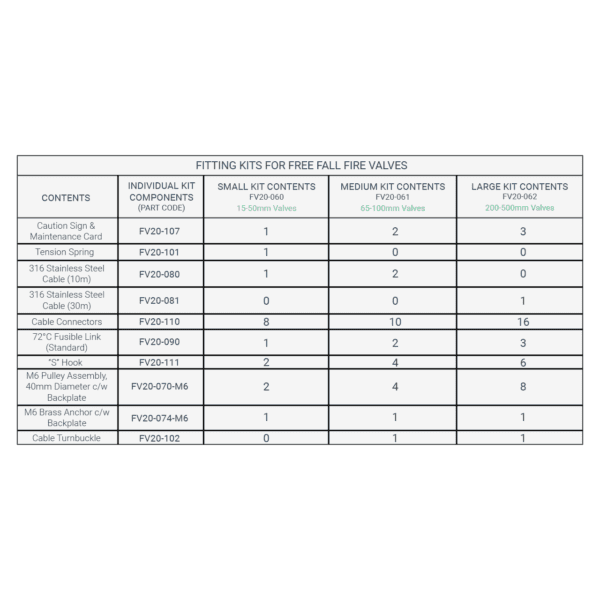

Complete fitting kits for the drop weight fire valve units. Every part available individually spares or replacements. Please check which valve you have against the parts matrix as there are parts available for valves between:

• 15mm to 50mm valves
• 65mm to 100mm valves
• 125mm to 200mm valves

As well as these FEL Drop Weight Fire Valve Fitting Kits, if you are looking for individual spares rather than a complete kit please see here – Drop Weight Fire Valve Spares

Additional information

Specification Sheet – DOWNLOAD HERE ▼
