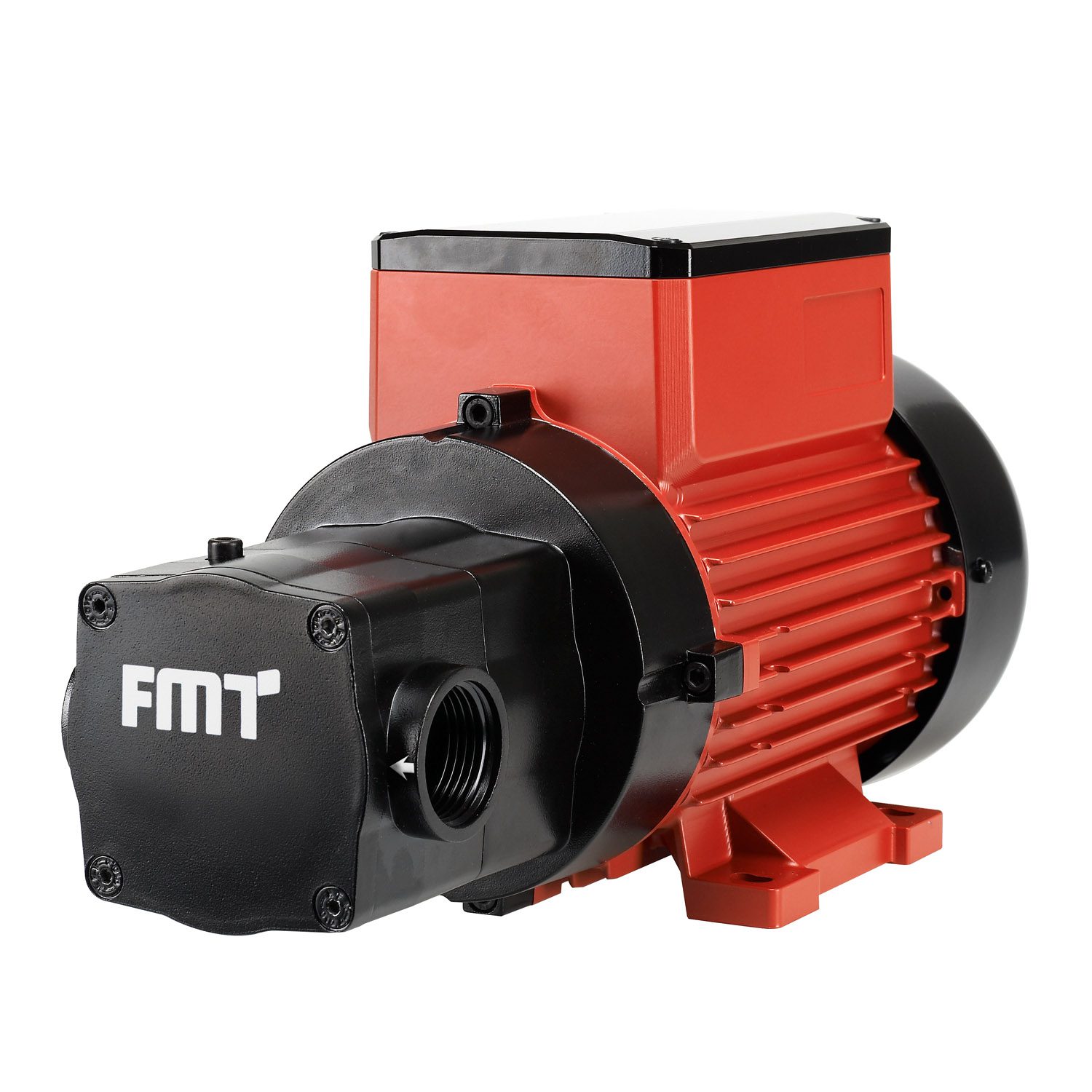

FMT 110V-60lpm Diesel Transfer Vane Pump

Description

FMT 110V-60lpm Diesel Vane Pump

A top quality, Swiss-made sliding-vane pump, designed for use with diesel and other products which are not aggressive to the pumps component materials. Due to their unsurpassed reliability on continuous duty operations, these can also be used as process pumps.

• Small tolerances provide a high suction- and pressure performance
• The material composition of the vane-stator (runner ring) guarantees form-stability of the vanes up to 200°C
• Materials guarantee a low weight and an exceptional lifetime with optimized efficiency
• Connecting cable, length (m) / (ft) 1,6 / 5.3
• Connection suction side G 1” female
• Connection discharge side G 1” femaleHydraulic data
• Pumping media fuel oil and diesel
• Pump design vane pump, selfpriming
• Delivery rate under free discharge up to (l/min) / US gal 65 / 17.2
• Suction height up to (m) / (ft) 3 / 9.8
• Discharge pressure up to (bar) / (psi) 1,8 / 26.1Motor data
• Insulation class F
• Highest permissible limit temperature (°C) / (°F) 155 / 311
• Voltage (V) 120
• Frequency (Hz) 60
• Power consumption (A) 6.5
• Power (W) 800
• Thermal protection self resetting
• Duty cycle (min) Continuous operation – a real endurance runner
• Torque (Nm) 1,27
• Rotation speed (rpm) 3250
• Type of construction IMB 3
• Safety class IP66

Packaging
Dimensions LxWxH (mm) / (inch) 338 x 200 x 196 / 13.3 x 7.9 x 7.7
Weight including package (kg) / (lb) 7 / 15.4
Packing unit 1,0

As well as this FMT 110V-60lpm Diesel Vane Pump we also supply the full range of various voltage and flow rate FMT pumps here – FMT fuel transfer pumps

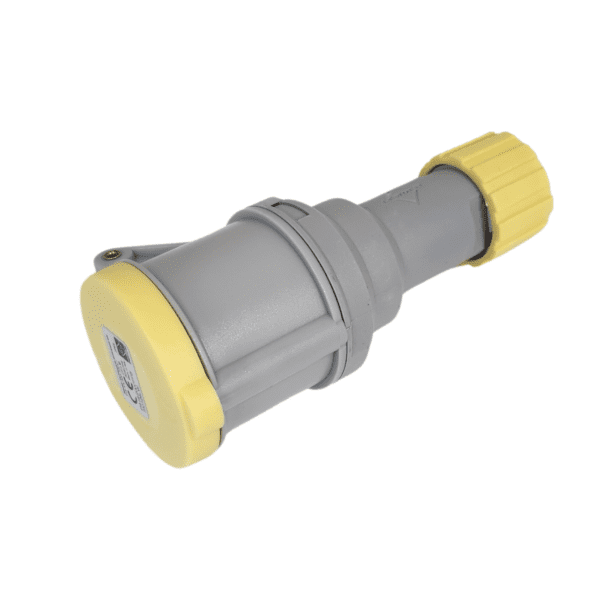

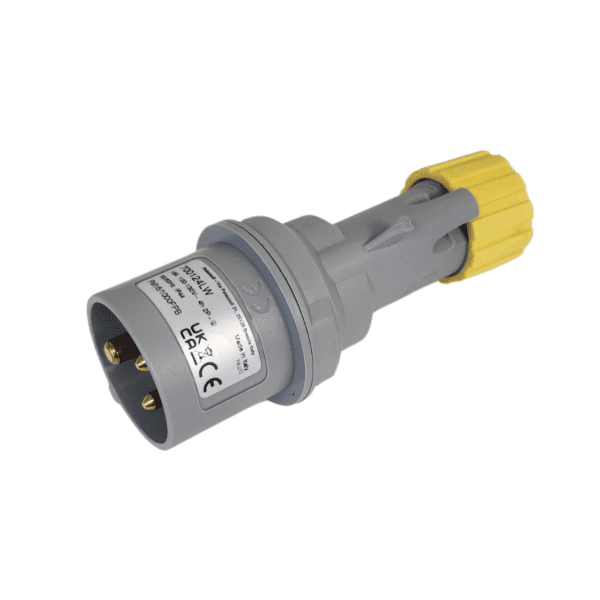

Should you need a 110v plug or socket adaptor to fit this pump please see here – 110v Inline plug socket – 110v Inline plug

Additional information

TECHNICAL DATASHEET
