Wavin Comfia UFHC10 Low Profile Underfloor Heating Pack 10

Multi-Zone | High & Low Temperature | Sentio Smart Wireless Controls | Low Profile Retrofit | 150mm Pipe Centres | 40m²–100m² | 18mm System

The Wavin Comfia UFHC10 Underfloor Heating Pack 10 is a complete multi-zone low profile underfloor heating system with smart wireless control, designed for installation directly over existing floors where minimal floor build-up is required.

With an ultra-slim 18mm system, UFHC10 is ideal for retrofit projects, renovations, or upgrades where traditional screeded systems are not practical.

This pack is compatible with both high-temperature systems (such as gas or oil boilers operating above 55°C) and low-temperature systems including heat pumps, offering flexibility across a wide range of installations.

UFHC10 features the Wavin Sentio smart wireless control system, supplied with multiple wireless thermostats to enable independent temperature control across different rooms or zones. This pack supports up to 2 zones, making it ideal for multi-room areas or open-plan spaces requiring separate control.

Using 150mm pipe centres, the system delivers high heat output while maintaining a low build-up height, making it suitable for a variety of floor finishes.

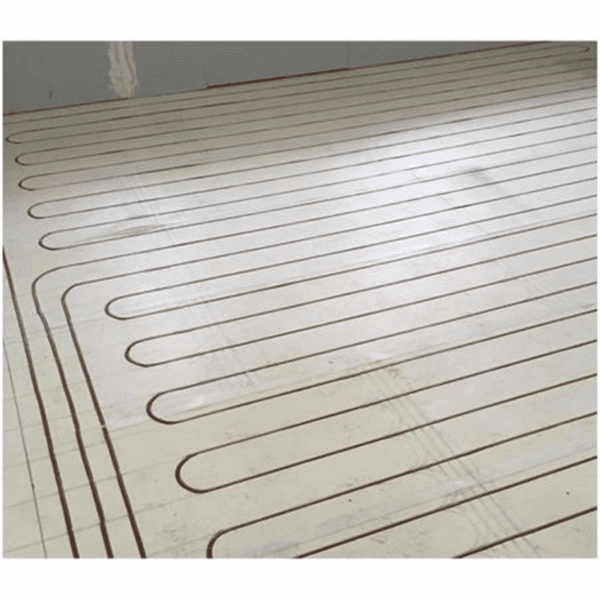

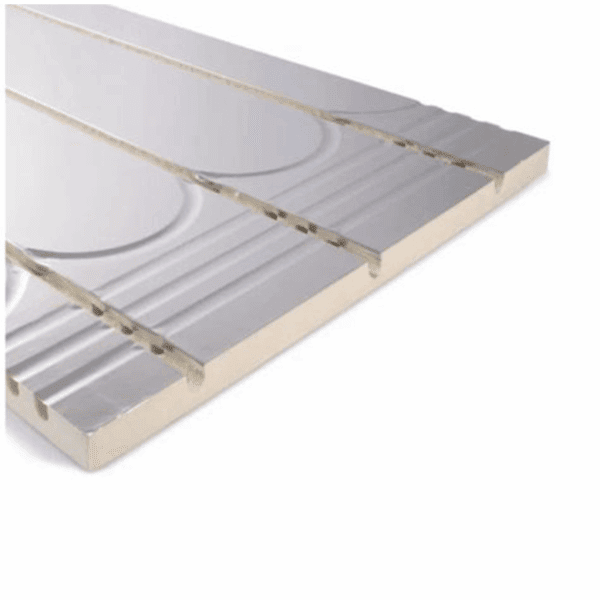

The system uses pre-routed low profile panels, supplied to match the selected floor area, allowing quick and consistent pipe installation using 12mm flexible polybutylene pipe.

Each pack is supplied with a correctly sized blended manifold with integrated pump and actuators, along with the required pipe coil and system components needed for installation, including isolation valves, temperature gauges, air vents, Eurocone connectors and a high limit thermostat.

Key Features

• Multi-zone underfloor heating system

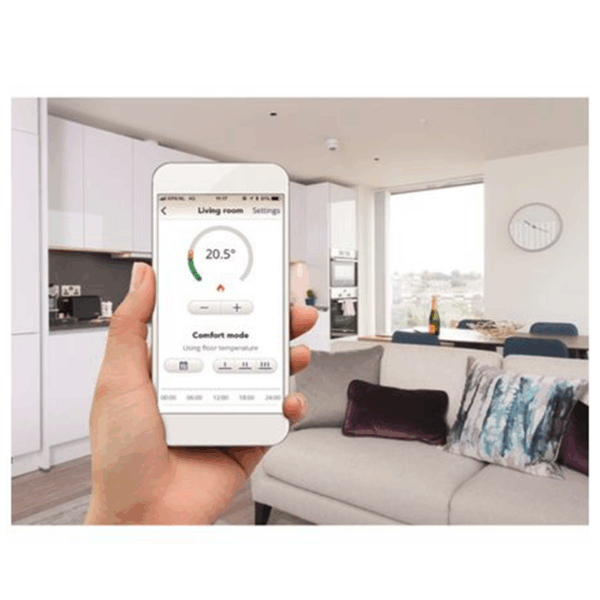

• Sentio smart wireless control system (app controlled)

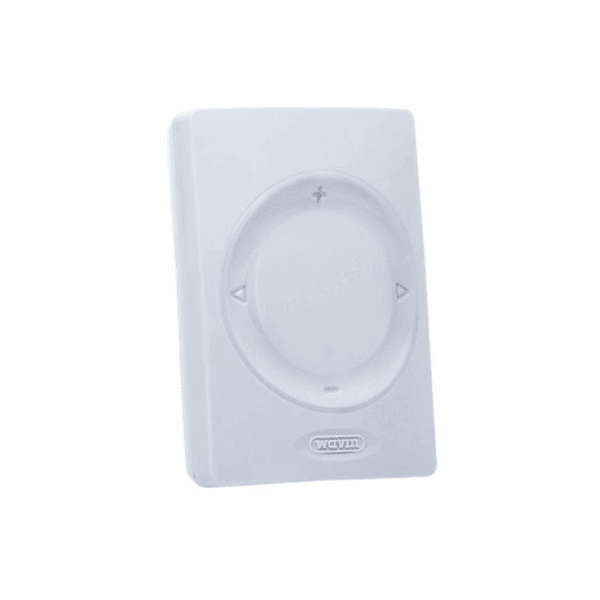

• Supplied with multiple wireless thermostats (up to 2 zones)
• Low profile 18mm retrofit solution
• Suitable for both high and low temperature systems
• Ideal for renovations and existing floor upgrades
• Pre-routed panels for fast, consistent installation
• 150mm pipe centres for high heat output
• Supplied with blended manifold, pump and actuators
• 12mm flexible polybutylene underfloor heating pipe

Performance & Technical Information

• Heat Output: Up to 145 W/m² (based on tiled floor at 50°C flow temperature)
• Pipe Centres: 150mm
• Floor Type: Low profile system panels (included)
• System Height: 18mm

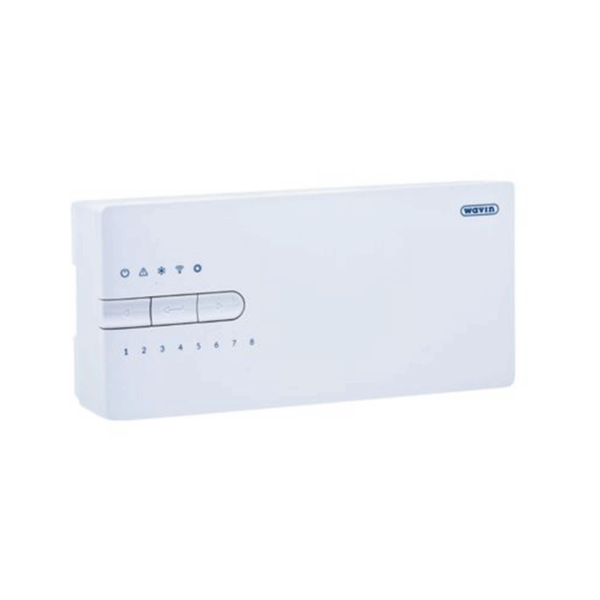

• Control Type: Wireless (Sentio smart system)
• System Compatibility: Suitable for both high and low temperature systems
• Includes: High limit thermostat, temperature gauge, isolation valves, Eurocone connectors, actuators
• Energy Efficiency (ErP): N
• Brand: Wavin

Wavin also provides system design and heat output calculations upon proof of purchase, offering additional reassurance for installers and specifiers.

Expected heat outputs are as follows:

The above heat outputs are for guidance only and calculated for systems with a flow temperature of 50ºC.

Available in pack sizes from 40m² to 100m² — simply select the area that suits your project.
