Description

Wavin Comfia UFHC2 Underfloor Heating Pack 2

Single Zone | High Temperature | Boiler Ready | 200mm Pipe Centres | Up to 100m² | Screeded Floor

The Wavin Comfia UFHC2 Underfloor Heating Pack 2 is a complete single-zone system designed for high-temperature heating applications, such as traditional gas or oil boiler systems.

Ideal for new builds and major renovations, this system is designed for installation within a screeded floor construction (screed not supplied) and provides reliable, consistent heat distribution across areas from 15m² up to 100m².

Using 200mm pipe centres, UFHC2 delivers efficient room heating while operating at standard boiler flow temperatures.

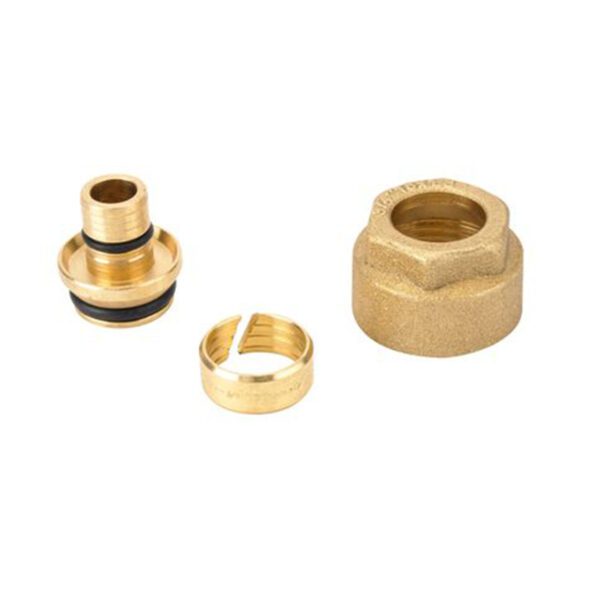

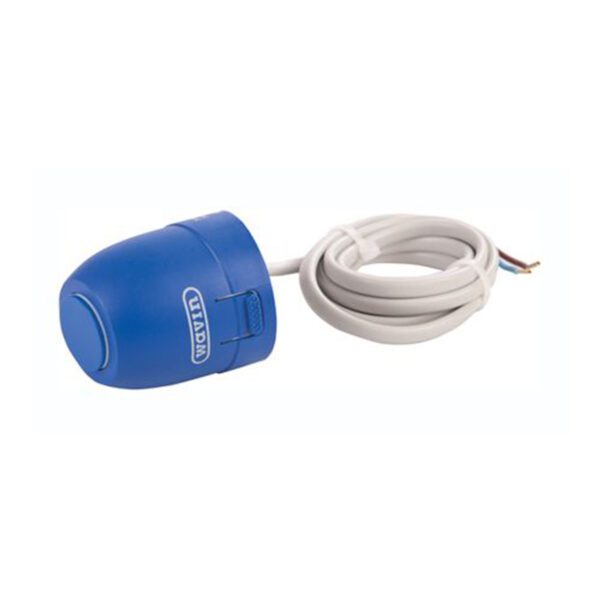

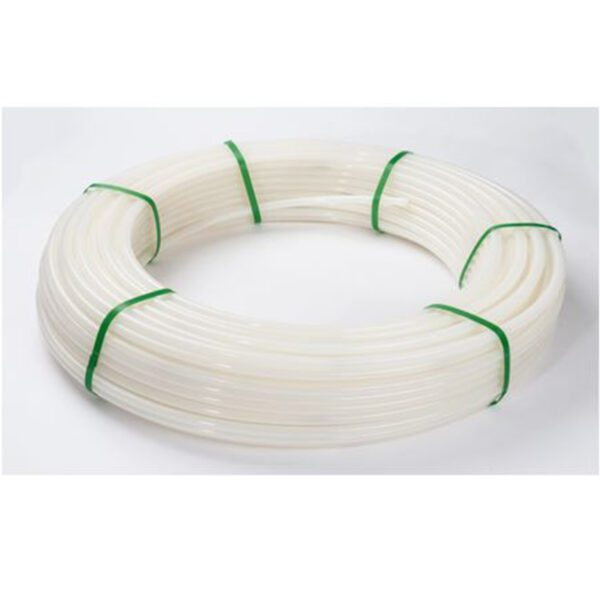

Installation is carried out using a tacker system, where 16mm PE-RT pipe is stapled directly into the insulation layer. Each pack is supplied with the correctly sized manifold and actuators to match the selected floor area, along with the required 16mm PE-RT pipe coil and system components needed for installation, including isolation valves, temperature gauges, air vents and Eurocone connectors.

Control is handled via a simple wired dial thermostat, allowing straightforward single-zone temperature management.

Key Features

• Single-zone underfloor heating system

• Designed for high-temperature boiler systems

• Suitable for screeded floor constructions

• 200mm pipe centres for efficient heat distribution

• Wired dial thermostat included

• Supplied with correctly sized manifold and actuators

• 16mm PE-RT underfloor heating pipe

Performance & Technical Information

• Heat Output: Up to 92 W/m²

• Pipe Centres: 200mm

• Floor Type: Screeded (not supplied)

• Control Type: Wired dial thermostat

• Energy Efficiency (ErP): N

• Brand: Wavin

Heat output guidance example:

The above heat outputs are for guidance only, and calculated for systems installed in 75mm screed, with a flow temperature of 50ºC.

Wavin also provides system design and heat output calculations upon proof of purchase, offering additional reassurance for installers and specifiers.

Available in pack sizes from 15m² to 100m² — simply select the area that suits your project.
